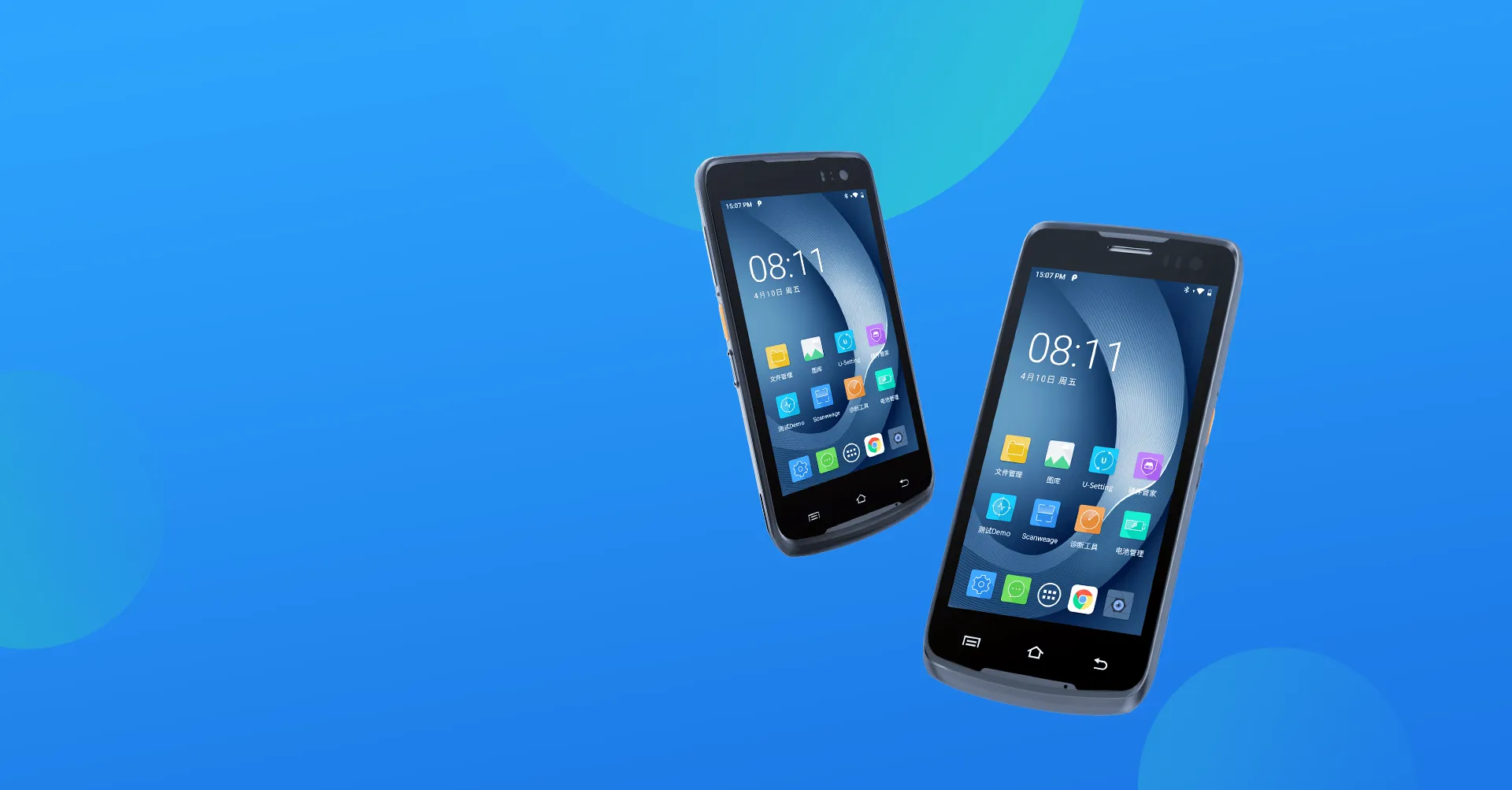

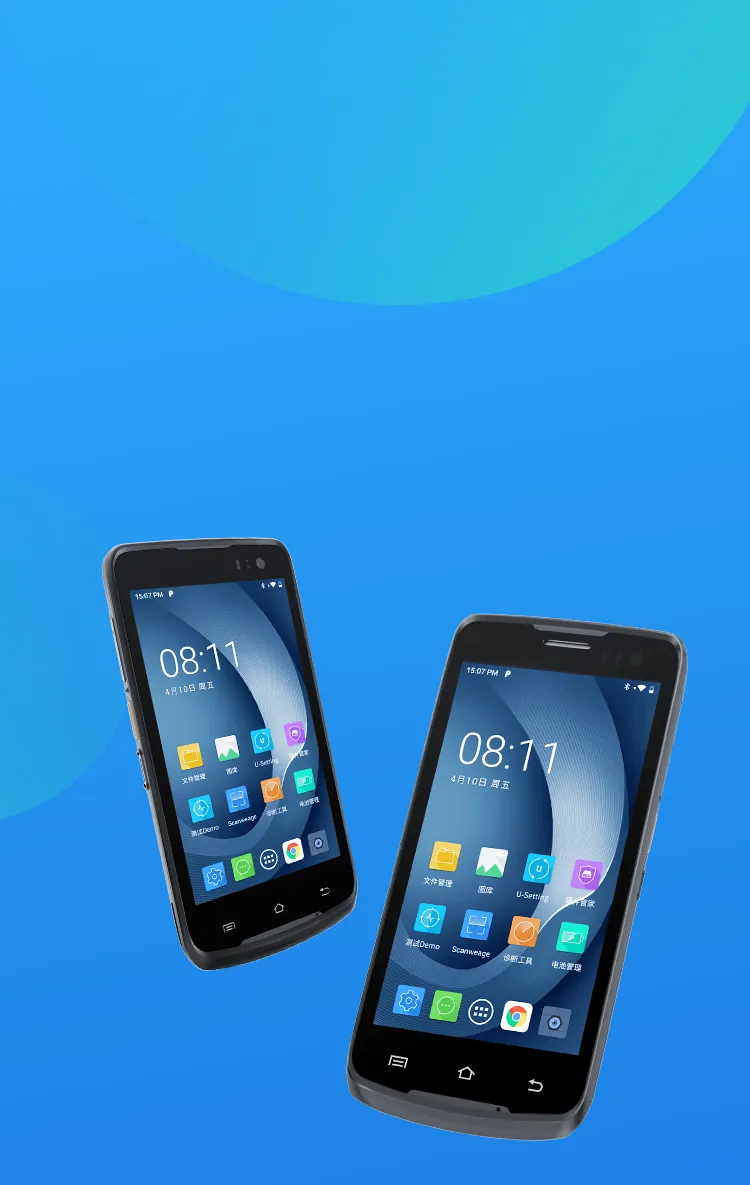

Extremely slim, re-defining the future
Its ergonomic design ensures a comfortable grip.

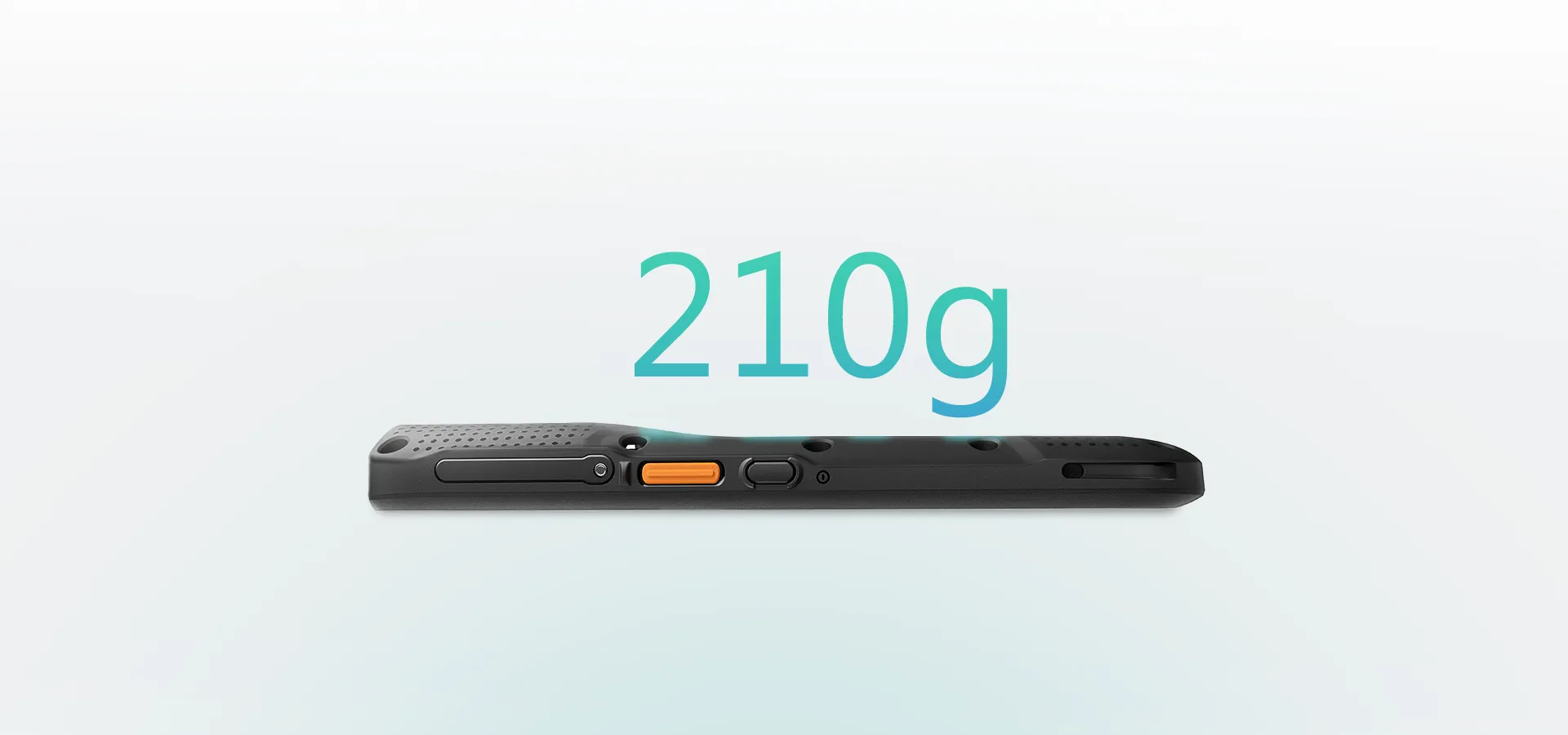

The weight of 210g allows fast operation with single hand.

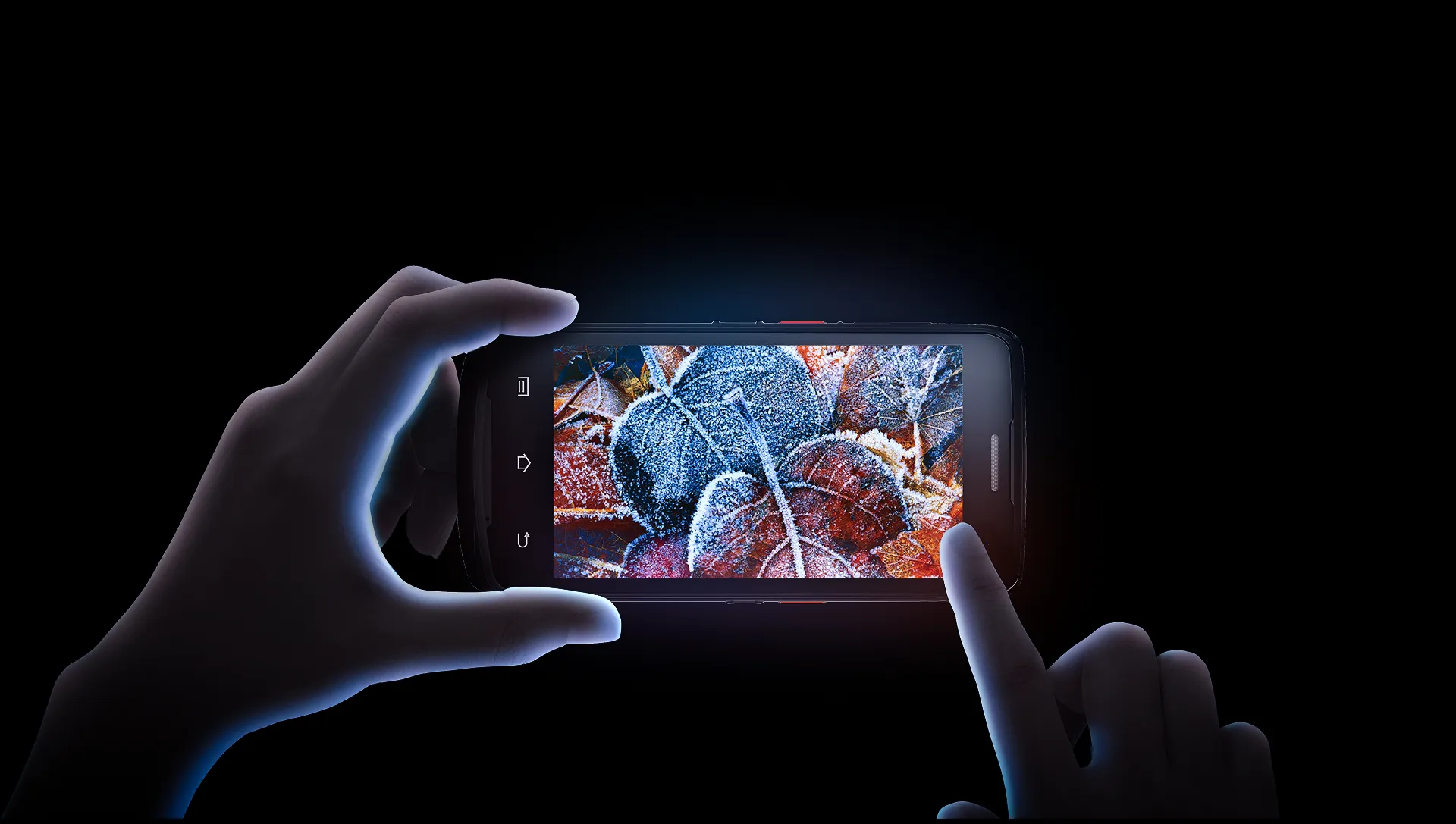

5.0" ultra-sensitive HD capacitive touch screen can be viewed at any angle and supports multi-point touch and touch with wet or dry hands, gloves in any harsh environment.

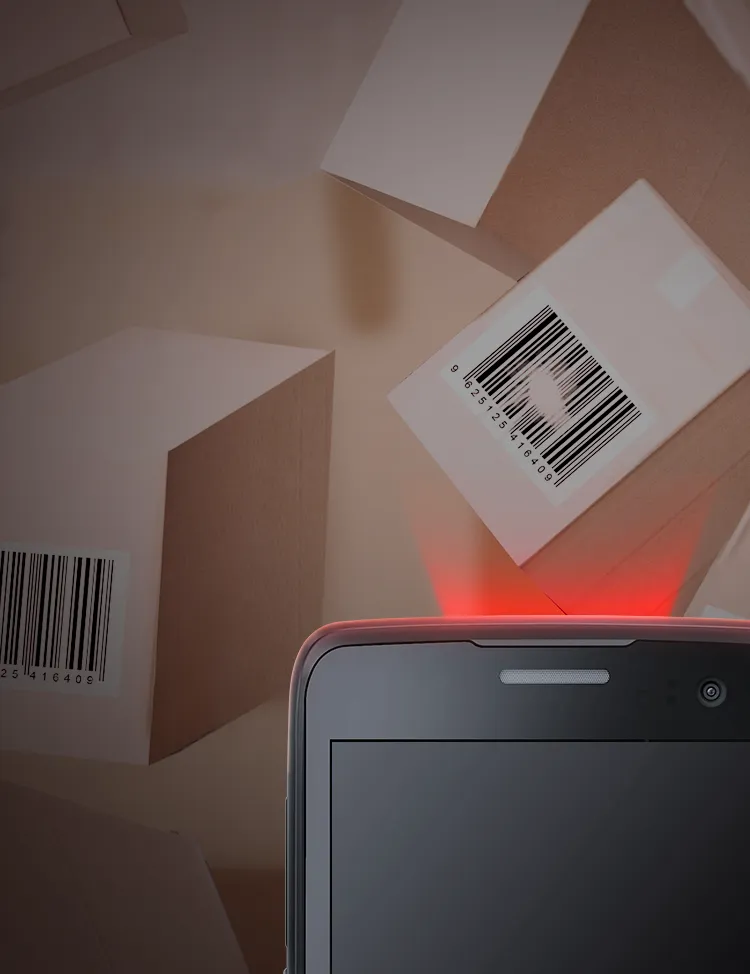

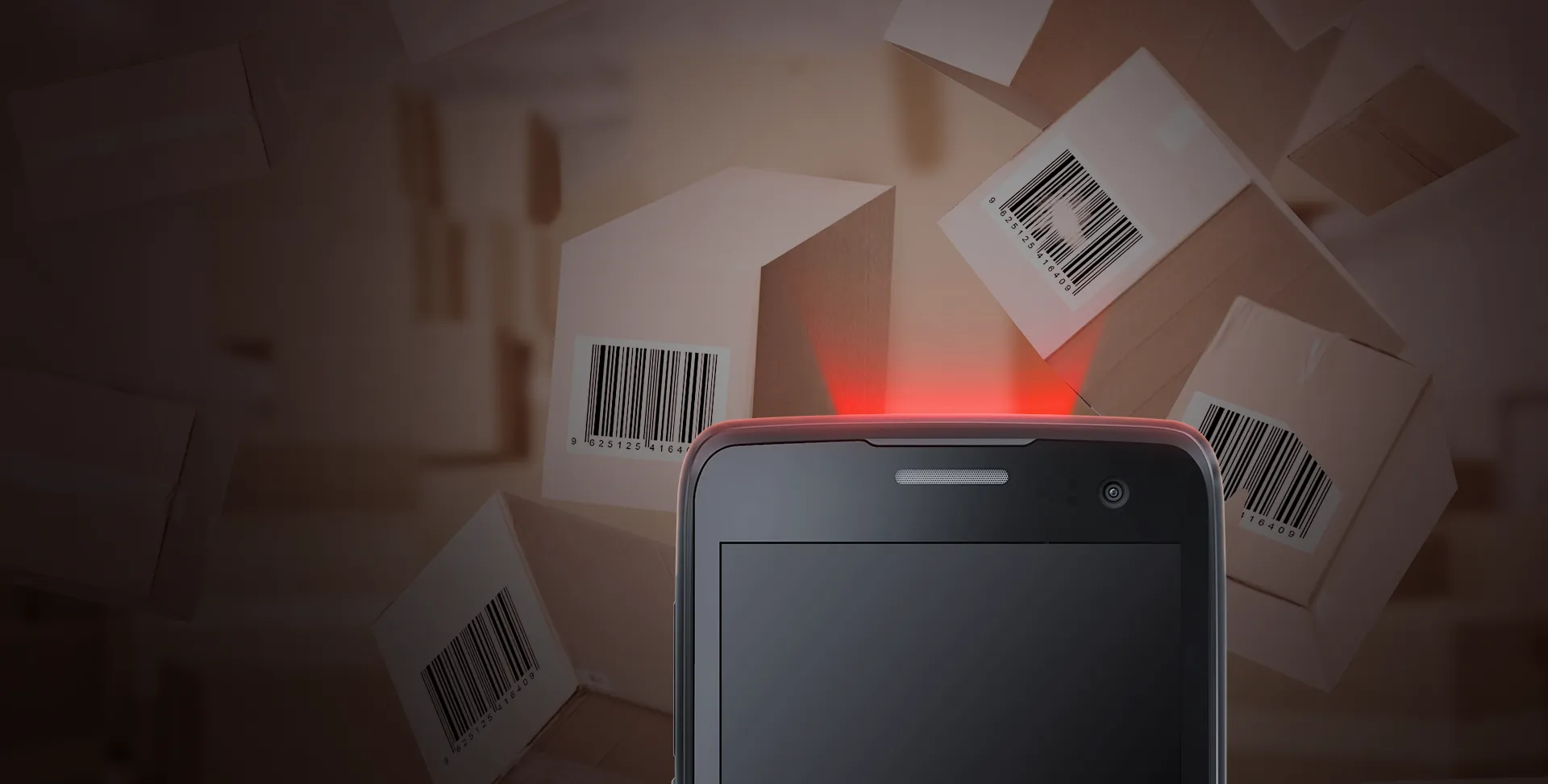

Scan all codes
A professional industrial scan engine for accurate, fast, and secure data collection.
Added with camera scanning, and provided with the green dot positioning function to realize rapid alignment.
Capable of identifying broken and stained barcodes to improve work efficiency.

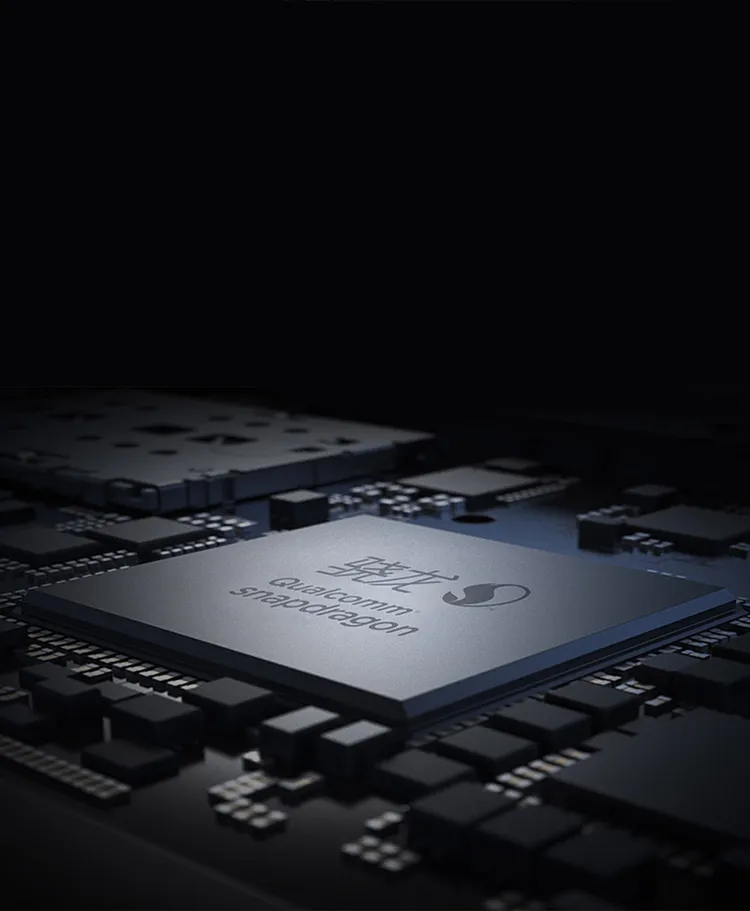

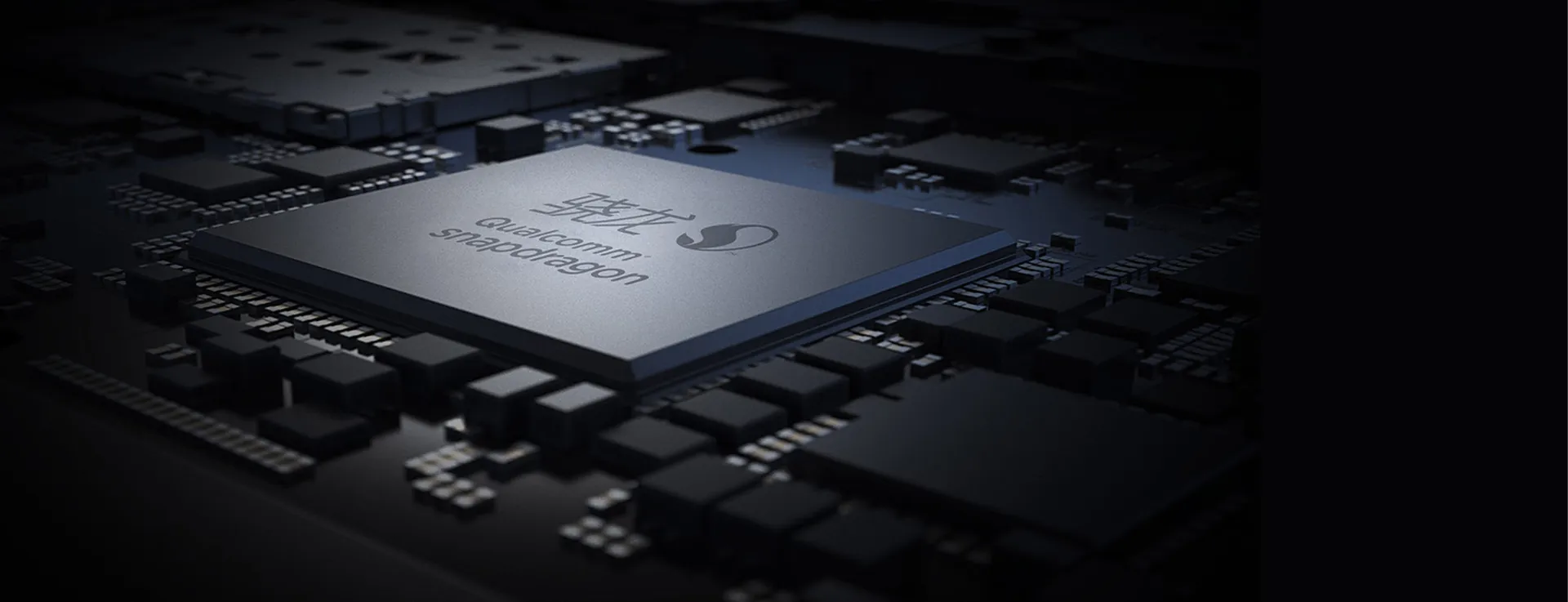

Qualcomm quad-core/ octa-core 1.4GHz CPU, dual-band Wi-Fi and all 4G networks, dual sim cards and dual standby, higher running speed, smooth operation, and faster and more stable data transmission.

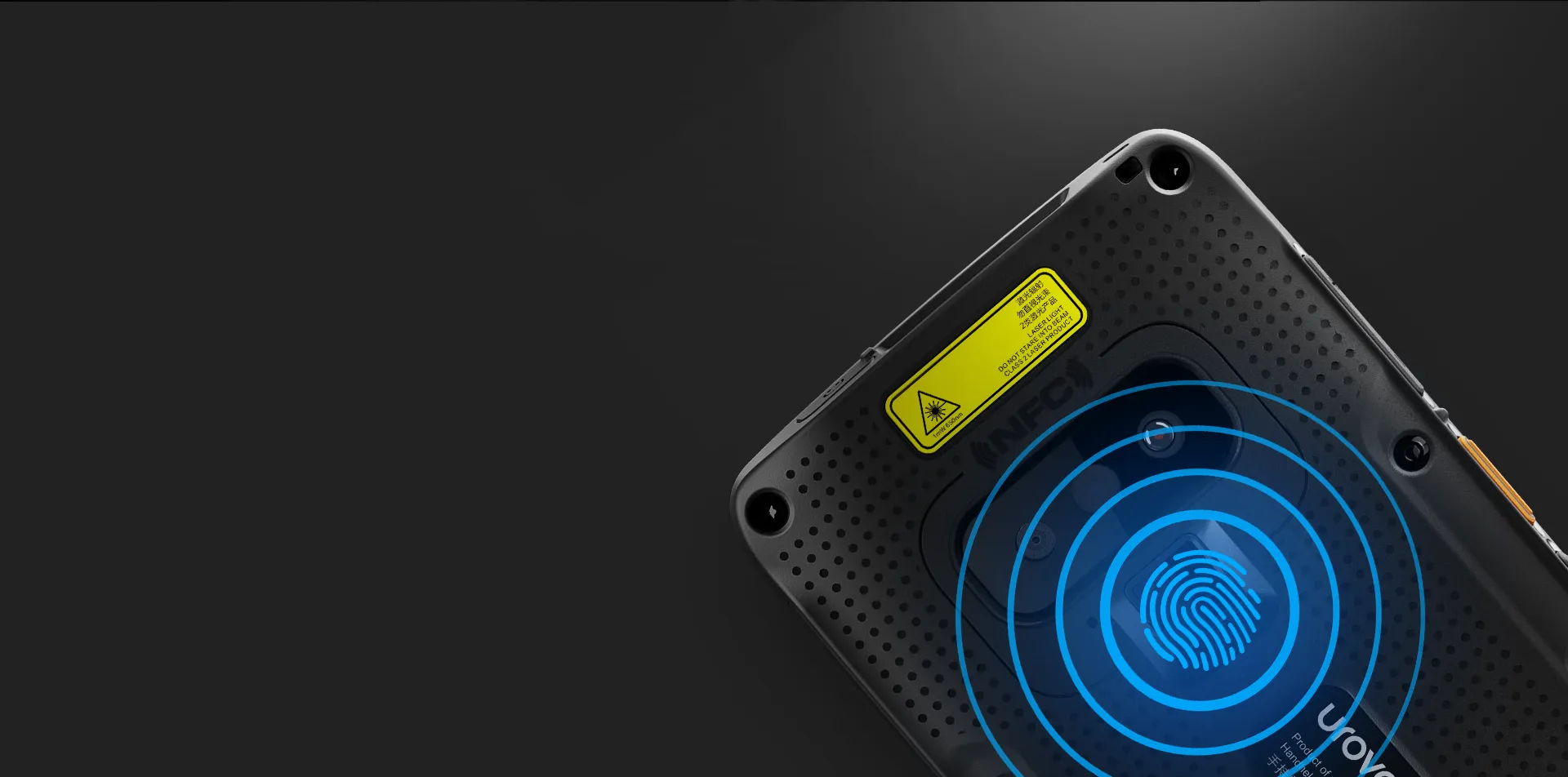

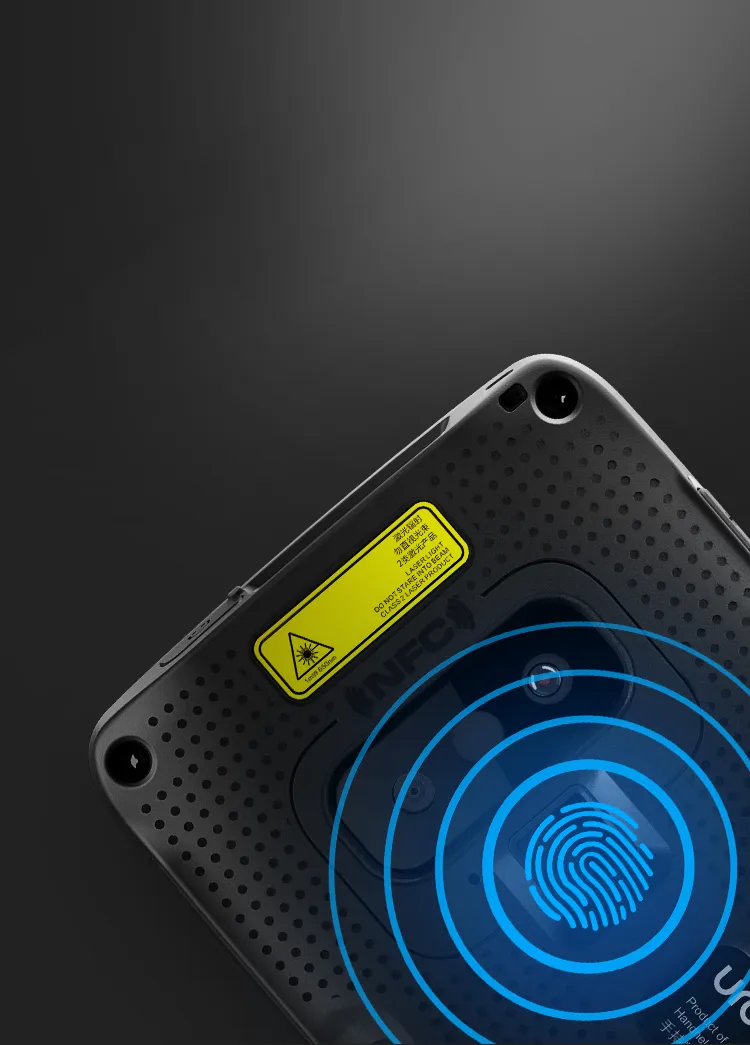

The high-performance fingerprint recognition chip is used to quickly and accurately identify fingerprints for fast fingerprint unlocking.
Smoother operation system
Based on the optimized Android 7.1/8.1 OS, it matches the UMS device management system to provide enterprises with richer applications, safer data guarantee, easier management, and more convenient and smoother operation.

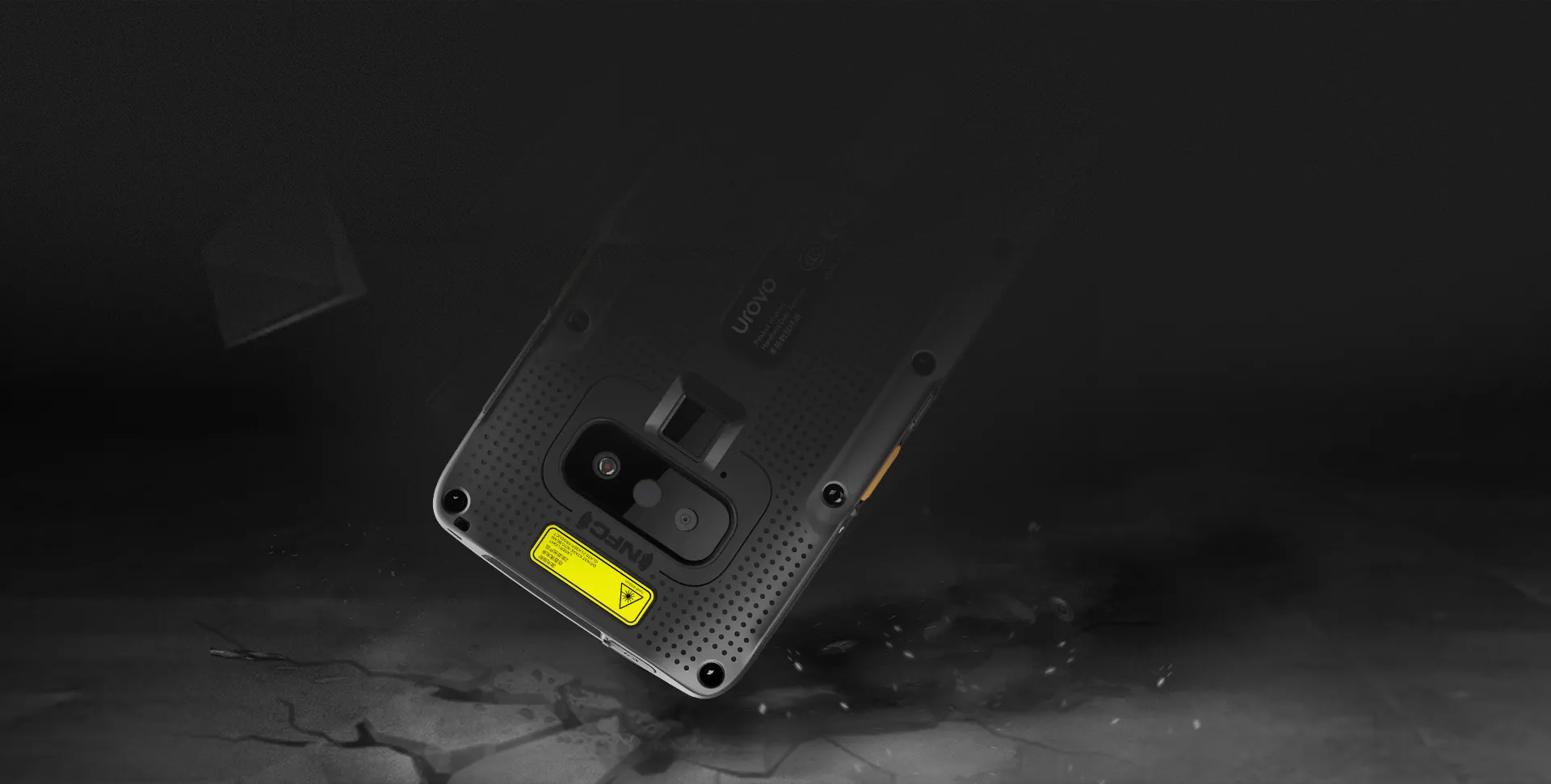

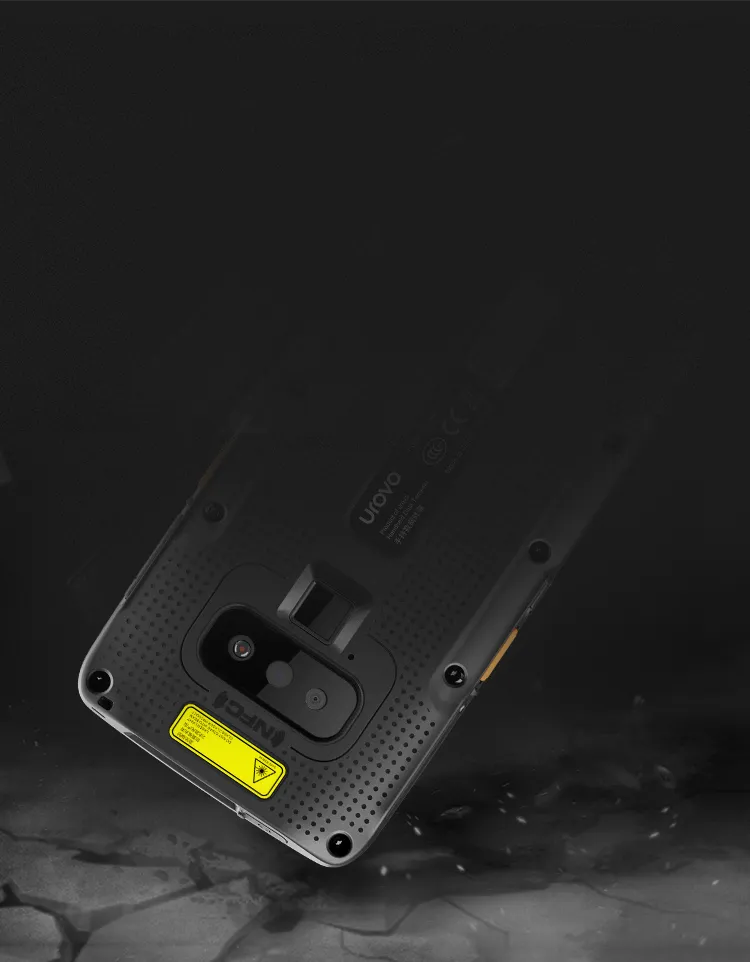

Industrial raw materials are used to meet IP67 sealing, 1.5m drop test passed, and dustproof and waterproof outdoors.

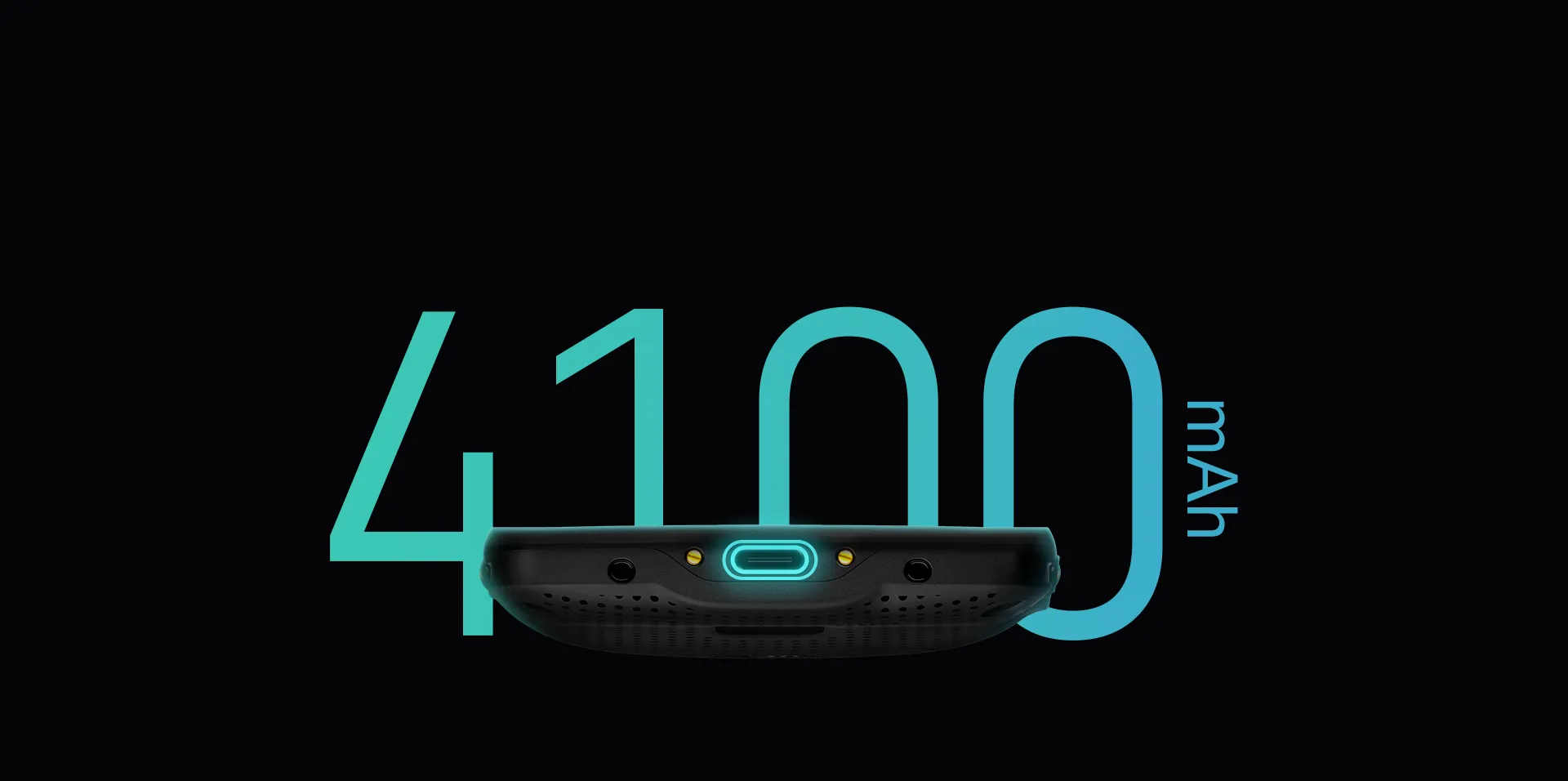

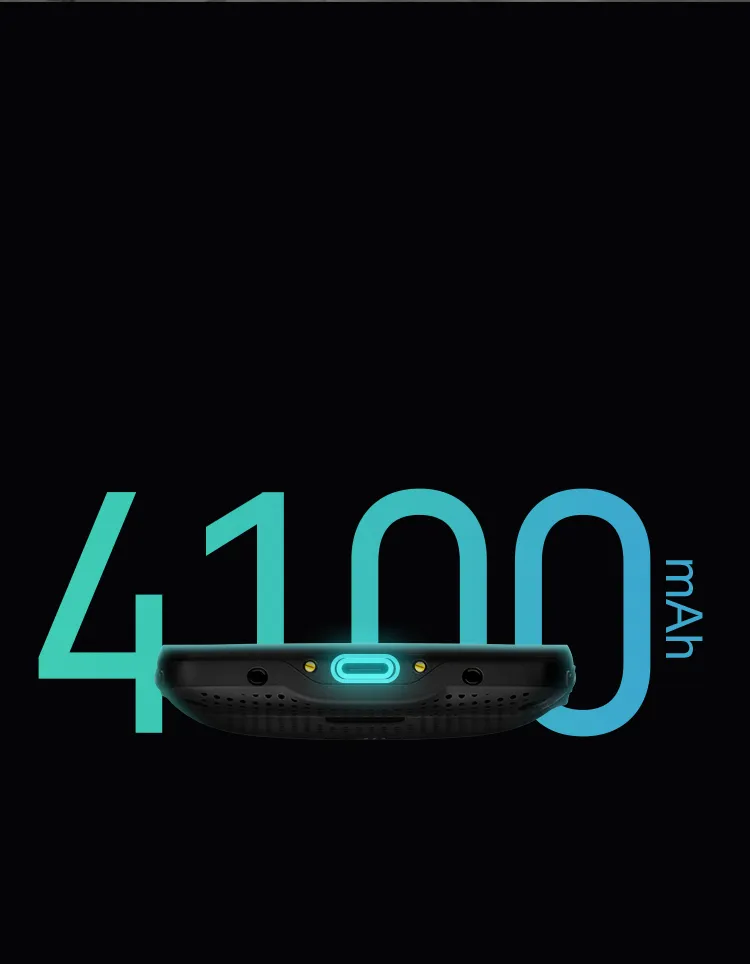

4100 mAh large capacity removable lithium battery (optional 4200 mAh) and low power consumption design.
Professional Type-C interface to realize zero-loss and quick charge.
CPUOcta-Core 1.4 GHz
Quad-Core 1.4 GHz
Display5.0inch TFT-LCD(720x1280) color screen
PowerRechargeable 3.8V 4100mAh lithium polymer battery pack
(Typical Operation time ≥8 hours)
Camera13MP auto-focus color rear camera
with flash 2MP front-facing camera
ButtonsVolume up/down, Power button,
Custom buttons, Scan button,
Home, Menu, Back
IEEE 802.11 a/b/g/n
Micro SIM× 2
Bei-Dou satellite navigation system,
Multiple 1.5m drop to concrete
at room temperature
Environment parameterOperating Temperature：- 10°C~60°C
Storage Temperature：- 40°C~70°C
Humidity：5%RH ~ 95%RH
Optional ModuleFingerprint module
