Q200
Q200 Desktop Barcode Scanner
Rapid Barcode Reads for Efficient Checkout

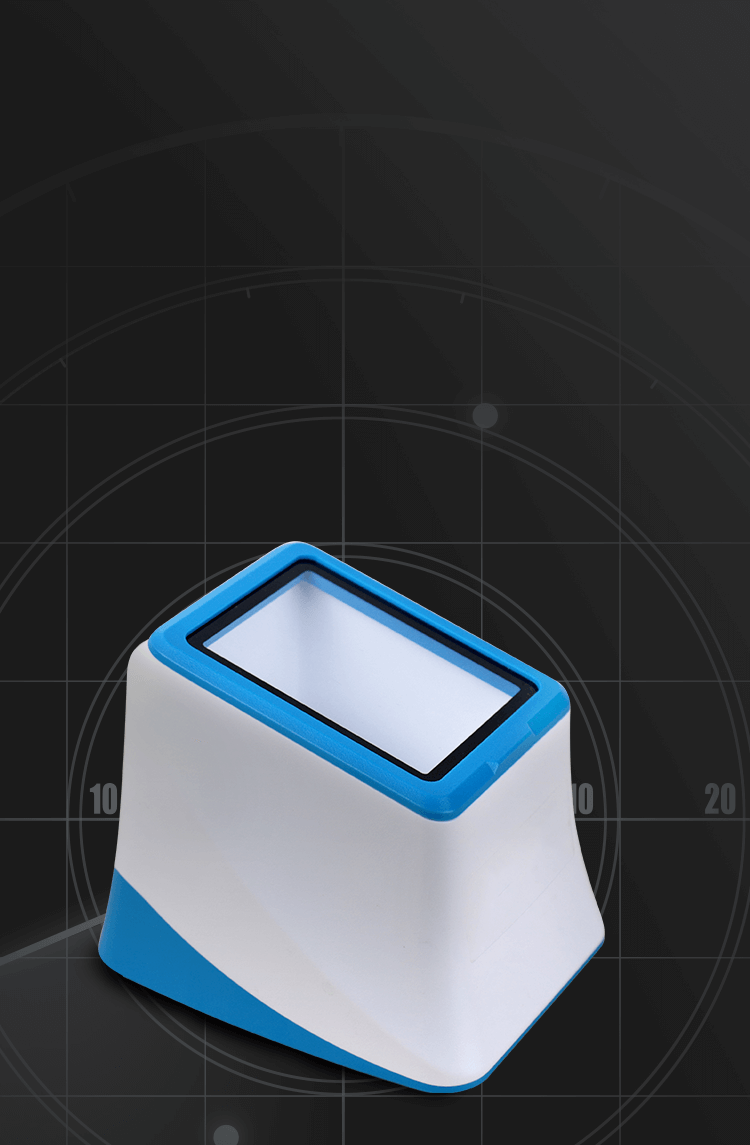

Fast and Full-Range Scanning
lts high flexibility and precise scanning capabilities allow it to swiftly and accurately capture barcodes or QR codes, even when they are rotated 360 degrees.
It supports 1D/2D barcodes scans, including payment codes, e-vouchers, and coupons.

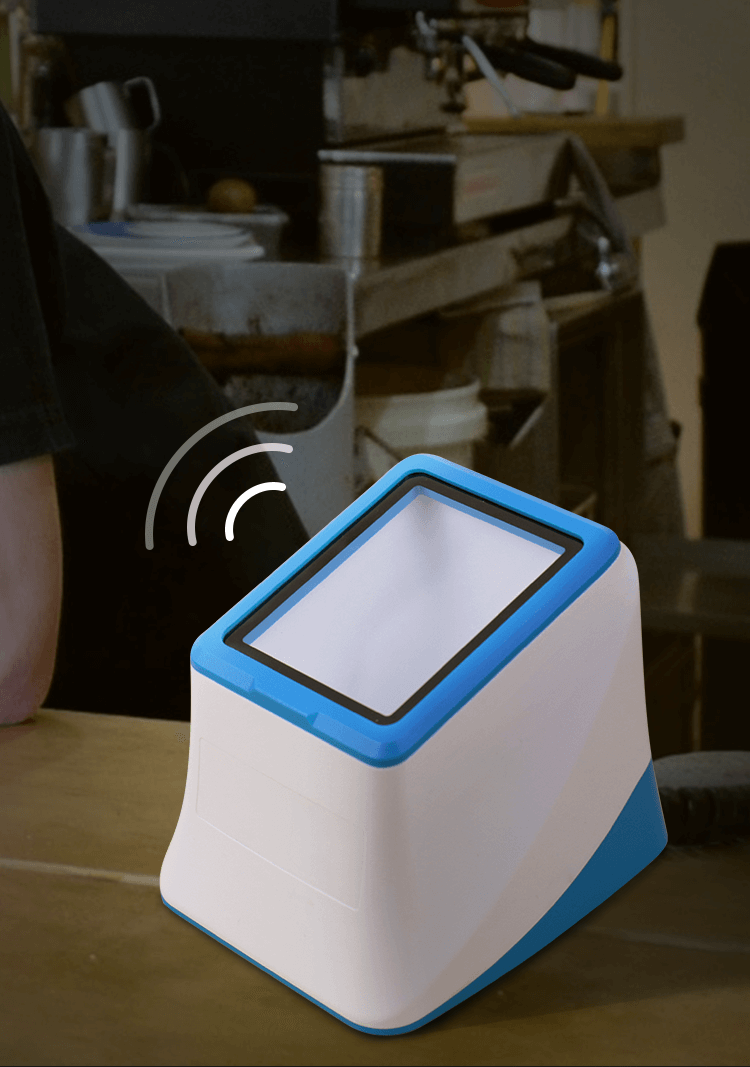

Smart Voice Feedback in Real Time
Featuring a high-efficiency smart voice feedback system, the device provides real-time updates on transaction status to users, ensuring that users can quickly access the necessary information even in high-traffic environments.

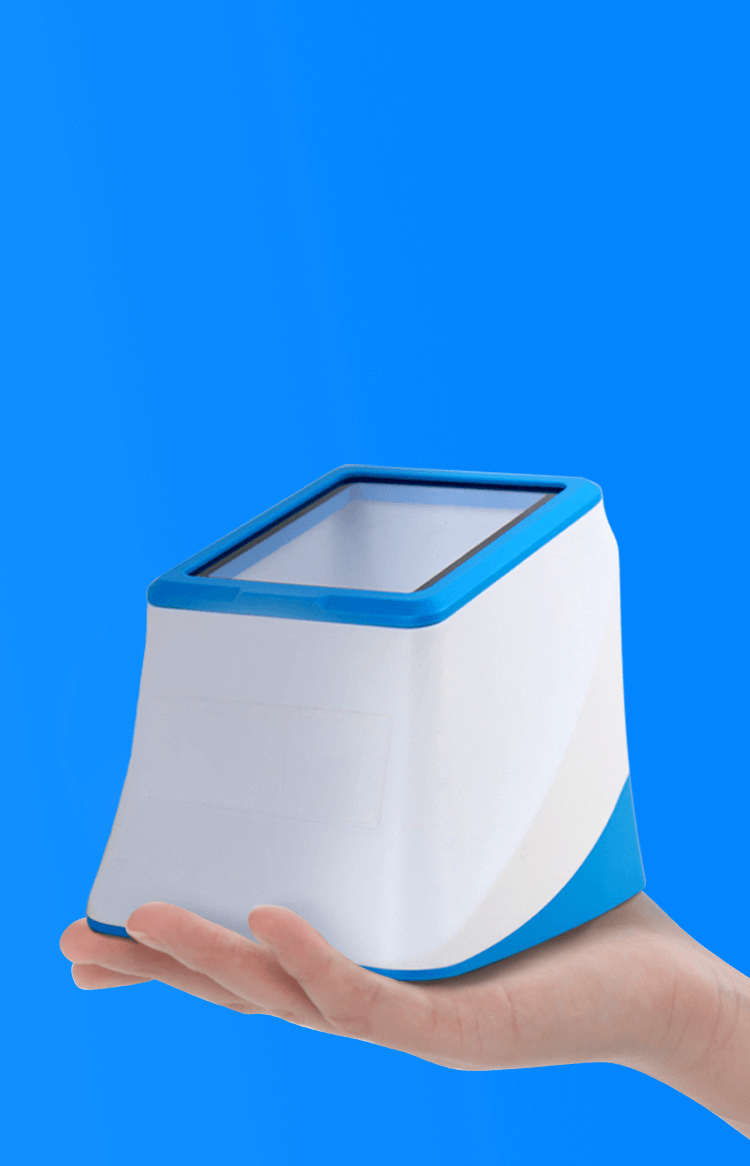

Compact Yet Large-Scanning-Windows Design
Combines a sleek, compact design with a large scanning window, offering aesthetic appeal and more accurate as well as faster barcode scanning.
Simplified Installation and Operation
Plug-and-play functionality with no need for additional software drivers, greatly simplifying the setup process.
It not only saves users valuable time but also allows even non-technical users to get started quickly.
It not only saves users valuable time but also allows even non-technical users to get started quickly.

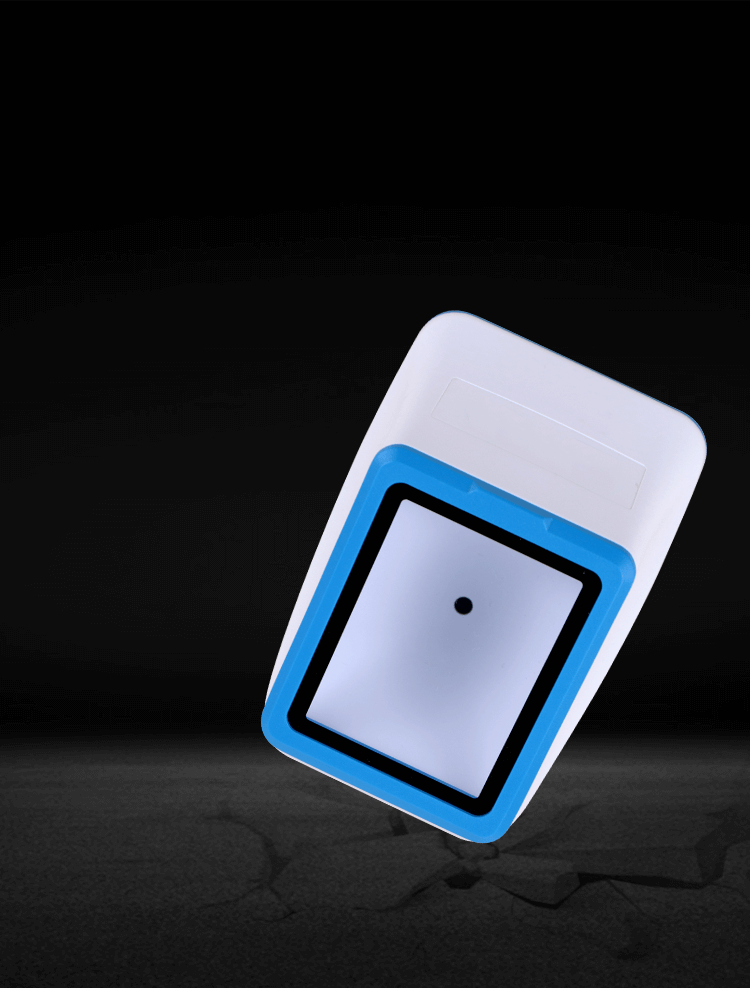

High-Sturdy and Durable Design
Withstanding drops of up to 1.5 meters onto concrete, the Q200
is engineered to perform reliably in diverse environments,
including harsh conditions, bright and dark settings.
Q200
-
CPU32bit RISC processor -
OSCompatible with Windows, Android, and Linux operation system -
Camera640(horizontal)X 480(vertical) CMOS，30fps -
Field of viewRoll 360°，skew±45°，pitch±45° -
Decode RangesEAN13：0~110mm(13mil)
Code128：0 ~ 150mm(20mil)
Code39：0~35mm(5mil)
Payment QR code：0 ~ 250mm (5”screen) -
Dimensions130mmLx108mmWx105mmH -
Weight270g -
InterfaceSupport USB-HID or USB virtual serial port USB HID-KBW(Default) -
Cable Length5 ft./1.5 m -
EnvironmentalWorking Temperature: -20℃ ~ 60℃
Storage temperature: -40℃ ~ 70℃
Working Humidity: 5%RH~95%RH（non condensing）
Shockwave: 5~200Hz，10Grms，3axes，1.5Hr
Drip Resistance: 5 ft./1.5 m drops on concrete -
Barcode ReadingRapidly read industry-leading 1D/2D barcode on paper, PC, and smartphone screen
Rapidly read QR code, electrical tag, coupon, and color barcode on screen of mobile device.
Default enable：EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix
Default disable：Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
* Please note that this introduction will be adjusted with the product updates, and the information is subject to change without prior notice.
